The fusible link mentioned here is mainly a mechanical fusible link of two metal sheets welded together with fusible alloy. It is mainly used in fire protection systems such as the triggering device in fire sprinkler systems,fire dampers and automatic door release mechanisms that close fire doors in warehouses, etc..
When the operating temperature reaches the melting point of the fusible alloy, the fusible alloy melts, the metal sheets separate, and the fire protection system starts to operate, thereby preventing the spread of fire.
It can also refer to the parts made of fusible alloys, which are used as safety device accessories in electronic and electrical appliances and household appliances.
Advantages of Fusible Link
Quick response
Fusible link is welded by low melting point alloys which can be melted quickly when reaching a certain temperature, thus cutting off the circuit or preventing further heat conduction.
Reliability
Fusible link is reliable in operation as they respond quickly to overcurrent conditions, interrupting the circuit to prevent further damage. They are a dependable form of protection in critical applications.
Compact size
Fusible link is typically compact in size, making them suitable for use in confined spaces or applications where space is limited. Their small size allows for easy integration into different systems.
Wide application
Fusible link can be machined different shape parts to suitable for work environment.Such as fire splinker,fire damper,smoke exhaust valve and so on.
Cost-effective
Fusible link is generally cost-effective compared to other types of overcurrent protection devices. They provide a simple and economical solution for protecting electrical circuits.
Easy replacement
In the event of a fault or overcurrent situation, fusible links are relatively easy to replace. This simplifies maintenance and reduces downtime in systems where they are used.
-
1. Please provide the size or drawing. 2. Please confirm the melting point and material of main body. 3. Please confirm to use eco-friendly or non eco-friendly fusible alloy
Add to Inquiry -

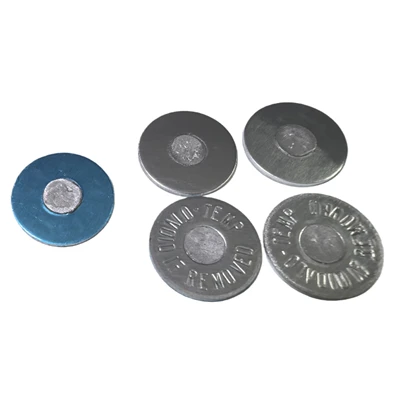

What are Engine Heat Tabs? Engine heat tabs are also called temperature indicator tabs.They are small, adhesive-backed metal discs that are attached to the surface of the engine. They contain a
Add to Inquiry -
Fusible Links For Security Shutters
Professional customization of fusible link with different materials(brass,iron or stainless steel) and different melting point.Good quality,long -term antioxidant and corrosion resistance.
Add to Inquiry -
Fusible Pin For Fluid Coupling
Fusible plugs use the low -melting point alloy in the device to melt at high temperature and open the channel to discharge the gas from the pores of the original fusible alloy. The molten temperature
Add to Inquiry -
-
Fire Detection Fusible Link 165F
How to get a price? 1. Please provide the size or drawing 2. Please confirm the melting point and material of main body 3. Please confirm to use eco-friendly or non eco-friendly fusible alloy 4.
Add to Inquiry -
-
Low Melting Point Fusible Link Cut Fire
Custom fire damper fusible link from 47℃ to 280℃.Supply copper,brass,stainless steel and iron sheet for option.
Add to Inquiry -
Custom fusible links with different temperature used for fire damper.
Add to Inquiry -
Fusible Metal Alloy Heat Detector Links
Custom fusible links used for fire damper,smoke exhaust valve,fire-proof door and so on.
Add to Inquiry -
Solder Sleeve Tin Bismuth Solder Washer
Solder sleeve is a special component used in electronic and electrical connections, usually combining the functions of heat shrink tubing and solder. It is mainly used for shielding grounding
Add to Inquiry -
When the ambient temperature reaches the melting point, the temperature sensor will automatically melt, cut off the circuit, play a role in fire prevention, and protect the circuit and equipment.
Add to Inquiry
Why Choose Us
Factory Area
At present, the company has more than 100 employees and a plant area of 15,000 square meters.
Main Products
Jewelry accessories, handicrafts, jewelry boxes, perfume bottles, hardware accessories...
OEM Solutions
Accept customization of various proportions and shapes.
After-sales Service
Adhere to the principle of quality first, customer first.
• The size of the link and the load rating in pounds for the link.
• The maximum ambient temperature rating for the link that is greater than the maximum ambient exposure temperature at the fire door. For example, an ordinary fusible link rated at 165 degrees F has a maximum ambient temperature rating of 100 degrees F. If a fusible link rated at 165 degrees F is routinely exposed to ambient temperatures over 100 degrees F, it is liable to separate and cause the fire door to close automatically. Select a fusible link rated at 212 degrees F (or greater) for this type of application.
(Note: Fusible links are available in many different load ratings. The load rating is an important factor in the design and selection of a fire protection system. Be sure to account for all loads when selecting a fusible link.)
Our History
Wochang is located in the world factory-Dongguan,Guangdong which has very developed transportation and various industrial chains. At present, the company has more than 100 employees and a factory area of 15000㎡. And also has a complete production line from alloy smelting to finished product packing.
Our Certificates
FAQ
We're professional fusible alloy preforms manufacturers in China, specialized in providing high quality customized products. We warmly welcome you to buy or wholesale high-grade fusible alloy preforms for sale here from our factory. For price consultation, contact us.
